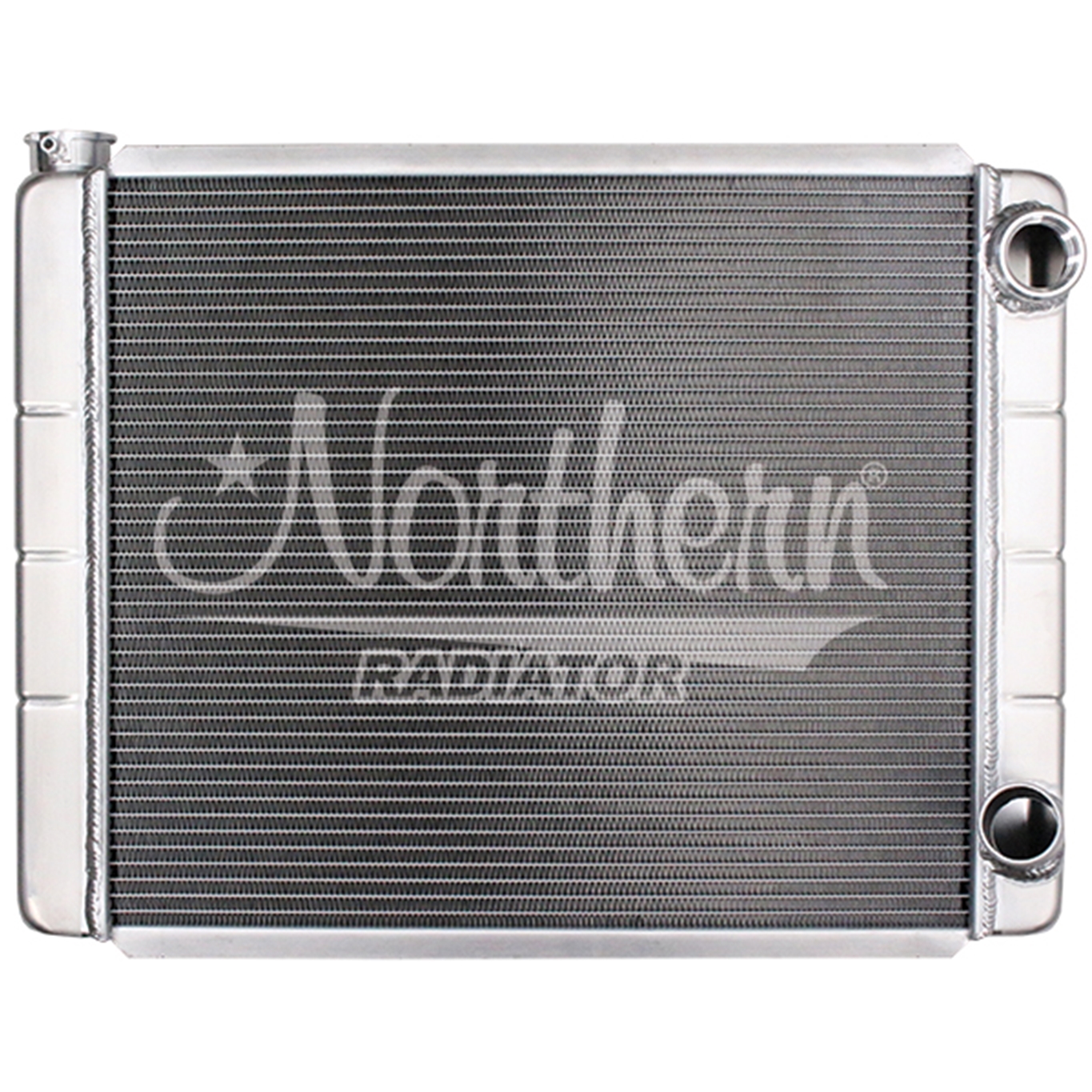

Race Pro Radiator - 26 x 19 GM Double Pass With Threaded Inlet
204119 Race Pro Radiator - 26 x 19 GM Double Pass With Threaded Inlet
204119 Race Pro Radiator - 26 x 19 GM Double Pass With Threaded Inlet
204119 Race Pro Radiator - 26 x 19 GM Double Pass With Threaded Inlet
Zoom
Machined billet aluminum SAE compliant filler neck
Inlet / outlet on left
For inlet options see:
1 5/8"-12UNJ male thread to AN16 Z17546
1 5/8"-12UNJ male thread to AN20 Z17547
1 5/8"-12UNJ male thread to 1 1/2" hose bead Z17548
1 5/8"-12UNJ male thread to 1 1/4" hose bead Z17549
1 5/8"-12UNJ male thread to 1 3/4" hose bead Z17553
1 5/8"-12UNJ male thread to 1 5/8" weldable bung Z17554
Item Details
OVERALL DIMENSIONS: 26 x 19 x 3 1/8
CORE HEIGHT: 20 3/4
CORE WIDTH: 18 1/8
DEPTH: 2 1/4
ROWS: 2 - 1" TUBES
INLET: 1 5/8 - 12UNJ FEMALE FITTING
OUTLET: 1 3/4
OIL COOLER: NO
RECOMMENDED STANDARD ELECTRIC FAN: Z40091
RECOMMENDED HIGH CFM ELECTRIC FAN: Z40074
RECOMMENDED BRUSHLESS FAN: Z40151
RECOMMENDED ENGINE DRIVEN FAN SHROUD: Z40021
