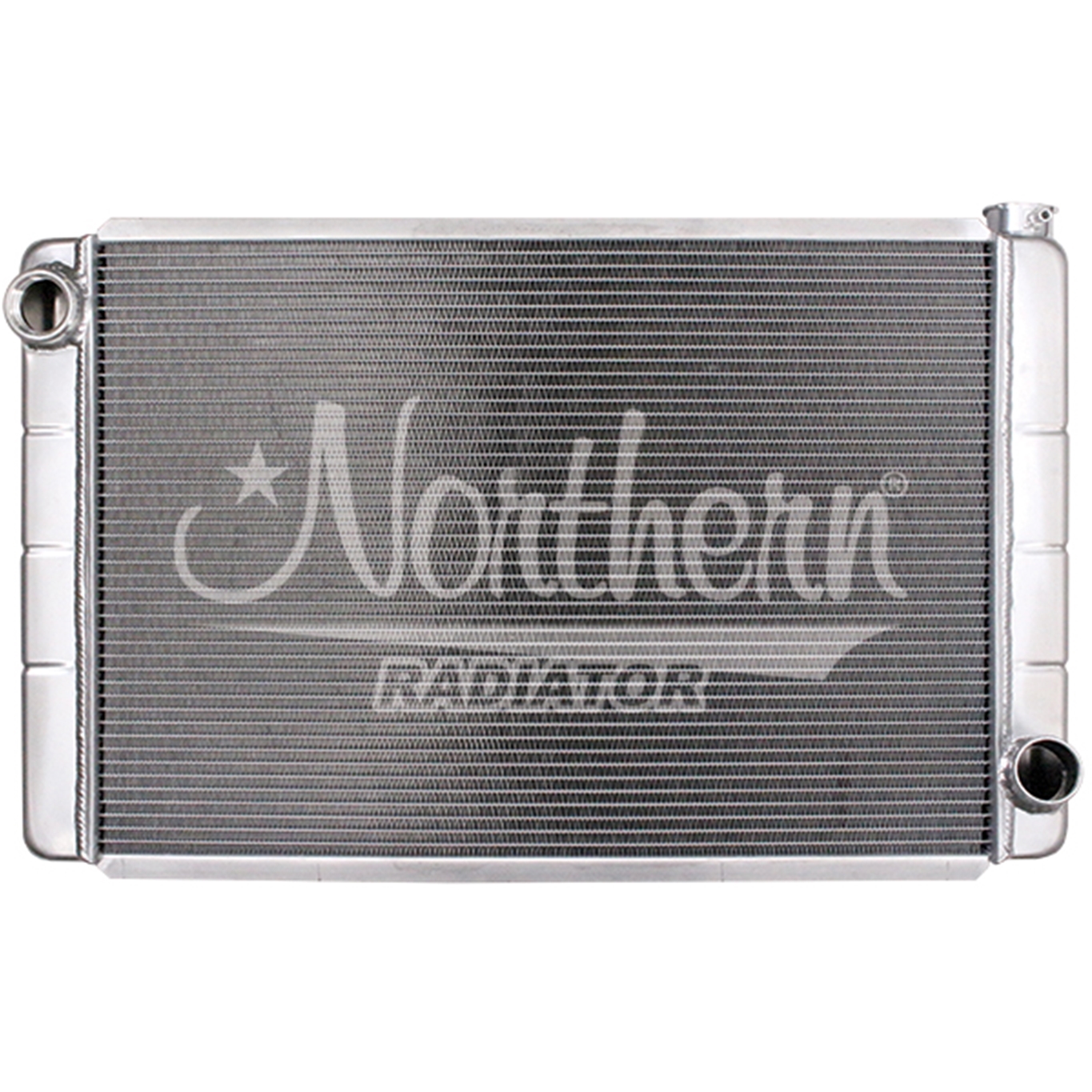

Race Pro Radiator - 31 x 19 GM With Threaded Inlet
204125 Race Pro Radiator - 31 x 19 GM With Threaded Inlet
204125 Race Pro Radiator - 31 x 19 GM With Threaded Inlet
204125 Race Pro Radiator - 31 x 19 GM With Threaded Inlet
Zoom
Machined billet aluminum SAE compliant filler neck
For inlet options see:
1 5/8"-12UNJ male thread to AN16 Z17546
1 5/8"-12UNJ male thread to AN20 Z17547
1 5/8"-12UNJ male thread to 1 1/2" hose bead Z17548
1 5/8"-12UNJ male thread to 1 1/4" hose bead Z17549
1 5/8"-12UNJ male thread to 1 3/4" hose bead Z17553
1 5/8"-12UNJ male thread to 1 5/8" weldable bung Z17554
Item Details
OVERALL DIMENSIONS: 31 x 19 x 3 1/8
CORE HEIGHT: 26 1/4
CORE WIDTH: 18 1/8
DEPTH: 2 1/4
ROWS: 2 - 1" TUBES
INLET: 1 5/8 - 12UNJ FEMALE FITTING
OUTLET: 1 3/4
OIL COOLER: NO
RECOMMENDED STANDARD ELECTRIC FAN SHROUD: Z40003
RECOMMENDED HIGH CFM ELECTRIC FAN SHROUD: Z40076
RECOMMENDED BRUSHLESS FAN SHROUD: Z40133
RECOMMENDED HURRICAN ENGINE DRIVEN FAN SHROUD: Z40023
